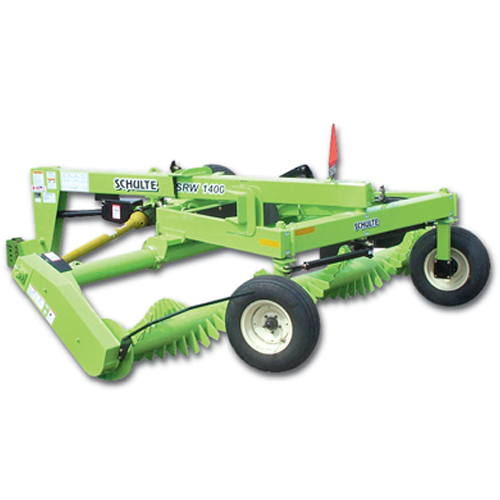

SRW-1400/1400-H Windrower
Schulte rock pickers and windrowers are durable and dependable for all of your agricultural and commercial needs. Whether you are looking to improve crop production, or prepare an area for improving ground appearance, our rock pickers and other rock removal equipment will get the job done. Protect your other agricultural machinery from potential damage from undiscovered rocky areas.
Features:
• Transports at an ultra narrow width of 93” (2.36 M).
• Windrows 2” to 25” rocks with ease, forming them into neat uniform rows.
• Power is supplied to the windrower drum via a heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads.
• The SRW-1400-H is hydraulically powered requiring a minimum of 15 GPM (57 LPM) flow.
• The #100 drive chain is totally enclosed for longer service life.
• The rock windrower drum is 14 feet (4.27 M) wide and is constructed of 8 5/8 inch (219mm) heavy wall HSS tube.
• Hardened 450 BHN, hard surfaced, steel are 5/8 inch (15.9mm) thick x 6 inch (152.4mm) long. Reversible, replaceable teeth are bolted to the drum pipe, resulting in problem-free operation even in difficult conditions.
• Windrows 2” to 25” rocks with ease, forming them into neat uniform rows.
• Power is supplied to the windrower drum via a heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads.
• The SRW-1400-H is hydraulically powered requiring a minimum of 15 GPM (57 LPM) flow.
• The #100 drive chain is totally enclosed for longer service life.
• The rock windrower drum is 14 feet (4.27 M) wide and is constructed of 8 5/8 inch (219mm) heavy wall HSS tube.
• Hardened 450 BHN, hard surfaced, steel are 5/8 inch (15.9mm) thick x 6 inch (152.4mm) long. Reversible, replaceable teeth are bolted to the drum pipe, resulting in problem-free operation even in difficult conditions.
